Threaded Contact Block
Construction / Specifications
| Temperature:
|
-60° C to 200°
C Copper alloy contact
-60 to 260° C
Nickel alloy contact |
| Insulator:
|
Aromatic
Polyether Plastic |
| Contact:
|
Copper alloy,
gold plated crimpable
Nickel allow
available by request |
| Pin
Size
|
Maximum
Voltage VDC
|
Operating
Voltage VDC
|
| #20 |
500 |
250 |
| #16 |
1000 |
500 |
| #12 |
2000 |
1000 |
| #8 |
3000 |
1200 |

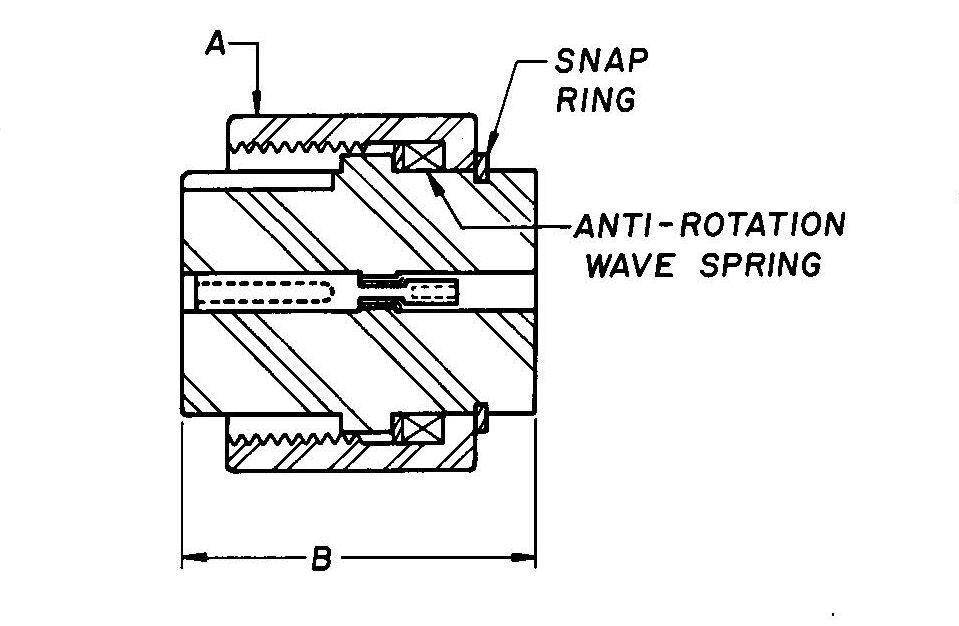

Threaded Contact Block
| Part Number
|
Shell
Insert
|
# - Size
Contact
|
A Overall
Diameter
|
B Overall
Length
|
| 16-B-04846 |
8-98 |
3 #20 |
0.688 |
1.16 |
| 16-B-04847 |
10-5 |
5 #20 |
0.750 |
1.16 |
| 16-B-04849 |
10-99 |
7 #20 |
0.875 |
1.16 |
| 16-B-04850 |
12-10 |
10 #20 |
0.953 |
1.16 |
| 16-B-04851 |
14-19 |
19 #20 |
1.125 |
1.16 |
| 16-B-04256 |
12S-3 |
2 #16 |
0.875 |
1.16 |
| 16-B-04257 |
10SL-3 |
3 #16 |
0.750 |
1.24 |
| 16-B-04258 |
14S-2 |
4 #16 |
1.000 |
1.24 |
| 16-B-04259 |
14S-5 |
5 #16 |
1.000 |
1.24 |
| 16-B-04260 |
16S-1 |
7 #16 |
1.187 |
1.24 |
| 16-B-04261 |
18-1 |
10 #16 |
1.312 |
1.54 |
| 16-B-04262 |
20-27 |
14 #16 |
1.437 |
1.54 |
| 16-B-04263 |
20-29 |
17 #16 |
1.437 |
1.54 |
| 16-B-04264 |
28-12 |
26 #16 |
1.937 |
1.54 |
| 16-B-04265 |
28-21 |
37 #16 |
1.937 |
1.54 |
| 16-B-04266 |
36-10 |
48 #16 |
2.437 |
1.54 |
| 16-B-04267 |
40-62 |
60 #16 |
2.625 |
1.54 |
| 16-B-04242 |
16-13 |
2 #12 |
1.187 |
1.60 |
| 16-B-04243 |
22-9 |
3 #12 |
1.562 |
1.60 |
| 16-B-04244 |
20-4 |
4 #12 |
1.437 |
1.60 |
| 16-B-04245 |
24-2 |
7 #12 |
1.687 |
1.60 |
| 16-B-04246 |
22-2 |
3 #8 |
1.562 |
1.60 |
| 16-B-04247 |
22-22 |
4 #8 |
1.562 |
1.60 |
| 16-B-04248 |
24-10 |
7 #8 |
1.687 |
1.60 |
